freeImageTocvMat&1channelTo3channes - freeimage转到cvmat & 单通道图像转到3通道

Posted on Edited on

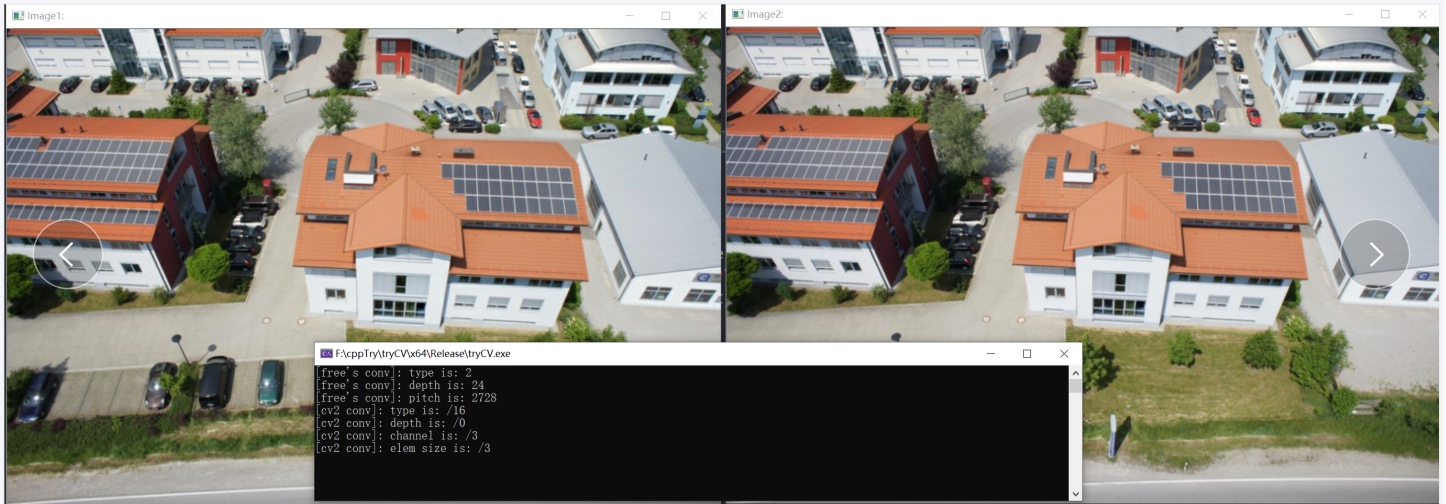

0 结果

https://cdn.jsdelivr.net/gh/xychen5/blogImgs@main/imgs/freeImg2cvMat.7hbdeyhx4n80.PNG

1 代码

将freeImage转为cv::mat，代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
#include <FreeImage.h>
#include <opencv2\opencv.hpp>
using namespace cv;

// #define _CRT_SECURE_NO_WARNINGS
#pragma warning(disable : 4996)
void FI2MAT(FIBITMAP* src, Mat& dst)
{
    //FIT_BITMAP    //standard image : 1 - , 4 - , 8 - , 16 - , 24 - , 32 - bit
    //FIT_UINT16    //array of unsigned short : unsigned 16 - bit
    //FIT_INT16     //array of short : signed 16 - bit
    //FIT_UINT32    //array of unsigned long : unsigned 32 - bit
    //FIT_INT32     //array of long : signed 32 - bit
    //FIT_FLOAT     //array of float : 32 - bit IEEE floating point
    //FIT_DOUBLE    //array of double : 64 - bit IEEE floating point
    //FIT_COMPLEX   //array of FICOMPLEX : 2 x 64 - bit IEEE floating point
    //FIT_RGB16     //48 - bit RGB image : 3 x 16 - bit
    //FIT_RGBA16    //64 - bit RGBA image : 4 x 16 - bit
    //FIT_RGBF      //96 - bit RGB float image : 3 x 32 - bit IEEE floating point
    //FIT_RGBAF     //128 - bit RGBA float image : 4 x 32 - bit IEEE floating point

    int bpp = FreeImage_GetBPP(src);
    FREE_IMAGE_TYPE fit = FreeImage_GetImageType(src);

    int cv_type = -1;
    int cv_cvt = -1;

    switch (fit)
    {
    case FIT_UINT16: cv_type = DataType<ushort>::type; break;
    case FIT_INT16: cv_type = DataType<short>::type; break;
    case FIT_UINT32: cv_type = DataType<unsigned>::type; break;
    case FIT_INT32: cv_type = DataType<int>::type; break;
    case FIT_FLOAT: cv_type = DataType<float>::type; break;
    case FIT_DOUBLE: cv_type = DataType<double>::type; break;
    case FIT_COMPLEX: cv_type = DataType<Complex<double>>::type; break;
    case FIT_RGB16: cv_type = DataType<Vec<ushort, 3>>::type; cv_cvt = COLOR_RGB2BGR; break;
    case FIT_RGBA16: cv_type = DataType<Vec<ushort, 4>>::type; cv_cvt = COLOR_RGBA2BGRA; break;
    case FIT_RGBF: cv_type = DataType<Vec<float, 3>>::type; cv_cvt = COLOR_RGB2BGR; break;
    case FIT_RGBAF: cv_type = DataType<Vec<float, 4>>::type; cv_cvt = COLOR_RGBA2BGRA; break;
    case FIT_BITMAP:
        switch (bpp) {
        case 8: cv_type = DataType<Vec<uchar, 1>>::type; break;
        case 16: cv_type = DataType<Vec<uchar, 2>>::type; break;
        case 24: cv_type = DataType<Vec<uchar, 3>>::type; break;
        case 32: cv_type = DataType<Vec<uchar, 4>>::type; break;
        default:
            // 1, 4 // Unsupported natively
            cv_type = -1;
        }
        break;
    default:
        // FIT_UNKNOWN // unknown type
        dst = Mat(); // return empty Mat
        return;
    }

    int width = FreeImage_GetWidth(src);
    int height = FreeImage_GetHeight(src);
    int step = FreeImage_GetPitch(src);

    if (cv_type >= 0) {
        dst = Mat(height, width, cv_type, FreeImage_GetBits(src), step);
        if (cv_cvt > 0)
        {
            cvtColor(dst, dst, cv_cvt);
        }
    }
    else {

        std::vector<uchar> lut;
        int n = pow(2, bpp);
        for (int i = 0; i < n; ++i)
        {
            lut.push_back(static_cast<uchar>((255 / (n - 1))*i));
        }

        FIBITMAP* palletized = FreeImage_ConvertTo8Bits(src);
        BYTE* data = FreeImage_GetBits(src);
        for (int r = 0; r < height; ++r) {
            for (int c = 0; c < width; ++c) {
                dst.at<uchar>(r, c) = saturate_cast<uchar>(lut[data[r*step + c]]);
            }
        }
    }

    flip(dst, dst, 0);
}

int main()
{
    FreeImage_Initialise();
    // std::string imgPath = "F:/cppTry/index3.png";
    std::string imgPath = "F:/cppTry/ger.JPG";
    FREE_IMAGE_FORMAT format = FreeImage_GetFileType(imgPath.c_str(), 0);
    FIBITMAP* fi_image = FreeImage_Load(format, imgPath.c_str());

    Mat cvImg2;
    FI2MAT(fi_image, cvImg2);
    cvNamedWindow("Image1:",1);
    cv::imshow("Image1:",cvImg2);
    // imshow(cv_img);

    IplImage *img = cvLoadImage(imgPath.c_str());
    cvNamedWindow("Image2:",1);
    cvShowImage("Image2:", img);
    std::cout << "[free's conv]: type is: "    << FreeImage_GetColorType(fi_image) << "\n";
    std::cout << "[free's conv]: depth is: "   << FreeImage_GetBPP(fi_image) << "\n";
    std::cout << "[free's conv]: pitch is: "   << FreeImage_GetPitch(fi_image) << "\n";
    std::cout << "[cv2 conv]: type is: " <<  "/" << cvImg2.type() << "\n";
    std::cout << "[cv2 conv]: depth is: " << "/" << cvImg2.depth() << "\n";
    std::cout << "[cv2 conv]: channel is: " << "/" << cvImg2.channels() << "\n";
    std::cout << "[cv2 conv]: elem size is: " << "/" << cvImg2.elemSize() << "\n";

    cvWaitKey();
    cvDestroyWindow("Image:");
    return 0;
}

2 将1通道转为3通道

1
2
3
4
5
6
7
void convert1to3Channel(cv::Mat& src, cv::Mat& dst) {
    vector<cv::Mat> channels;
    for (int i = 0; i < 3; i++) {
        channels.push_back(src);
    }
    cv::merge(&channels[0], channels.size(), dst);
}
